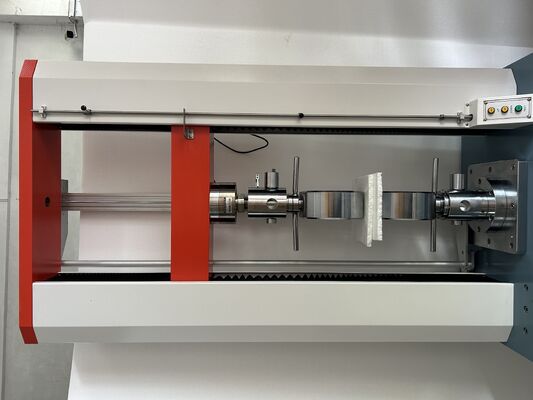

300kN Computer Servo Tensile Testing Machine | for Cold Drawn Steel Wire & Bars | 30T Capacity Universal Tester

Gambar besar : 300kN Computer Servo Tensile Testing Machine | for Cold Drawn Steel Wire & Bars | 30T Capacity Universal Tester

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	ZL
Sertifikasi:	CE
Nomor model:	ZL-8006

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

MAX LOAD:	300kn	Nilai yang akurat:	0,5 kelas
Rentang pengukuran yang efektif:	0,4%~100%	Akurasi pengukuran:	Tampilkan nilainya±0,5%
Resolusi Penguji:	Beban maks 1/200000	Akurasi perpindahan:	Toleransi: ±0,5% / ±0,2%
Stroke tarik efektif:	800mm	Lebar pengujian yang efektif:	400mm
Catu Daya:	220V ± 10%	Rentang kekuatan uji:	1%-100%
Uji Kekuatan Resolusi:	1/500.000 kekuatan uji maksimal	Resolusi deformasi:	Deformasi maksimal 1/500000
Resolusi perpindahan:	0,001mm	Rentang Kecepatan:	0,01mm/menit ~ 400mm/menit
Tenaga motor servo:	3kw
Menyoroti:	300kN universal testing machine , 30T capacity tensile tester , servo tensile machine for steel wire

300kN Computer Servo Tensile Testing Machine | for Cold Drawn Steel Wire & Bars | 30T Capacity Universal Tester

Product Introduction

Our microcomputer-controlled electronic universal testing machine incorporates advanced foreign technology to deliver superior performance for material testing applications.

Applications

This versatile testing machine performs mechanical property tests on both metal and non-metal materials, including:

Tension, compression, bending, and shear testing
Testing of profiles and components with various attachments
Materials with large deformation and fast test speeds (rope, tape, rubber, plastic)

Ideal for quality control, research, aerospace, metallurgy, automotive, and construction industries.

Compliance Standards

Meets national standards GB/T228.1-2010 (metal tensile testing) and GB/T7314-2005 (metal compression testing), with compatibility for GB, ISO, ASTM, and DIN standards.

Key Features

Mainframe

Double space door structure (upper tension, lower compression/bending)
Steplessly adjustable cross beam
Smooth arc synchronous toothed belt and screw vice transmission
Precision ball screw vice drive for gap-free movement

Attachments

Standard configuration includes wedge-type tensile attachment and compression attachment.

Electrical Measurement & Control System

AC servo system with comprehensive protection features
Closed-loop control for test force, deformation, and displacement
Multiple test modes with smooth switching capability
High-speed return to initial position
Network interface for data transmission and printing

Technical Specifications

Parameter	Value
Maximum Test Force	300 kN
Test Force Measurement Range	1%-100%
Test Force Resolution	1/500000 of maximum force
Speed Range	0.01-400 mm/min (stepless)
Tensile Stroke	600 mm
Compression Space	600 mm
Servo Motor Power	3 kW
Dimensions	900×600×2000 mm
Weight	Approx. 500 kg

Test Capabilities

Tensile stress and strength
Elongation at break rate
Fixed stress and stress at break rate
Tear strength and adhesion force
Force measurement at any point

Software Features

Standard modular function covering GB, ASTM, DIN, JIS, BS standards
Dual-report editor with customizable formats
Unit conversion for length and force measurements
Automatic data preservation and calculation of multiple parameters
Graphical display of load-displacement, load-time, and stress-strain curves

Standard Accessories

One-year warranty and operating instructions
Fixture set
Testing software
Brand computer and color printer

About Zhongli Instrument Technology

Since 2007, we have specialized in manufacturing laboratory testing equipment for various industries including rubber, plastics, food packaging, and electronics. Our products are exported to over 110 countries with particular success in European and American markets.
