20KN Universal Testing Machine | Mechanical Tensile Tester | Competitive Price for Material Testing

Gambar besar : 20KN Universal Testing Machine | Mechanical Tensile Tester | Competitive Price for Material Testing

Detail produk:

Tempat asal:	Guangdong, Tiongkok
Nama merek:	ZL

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

MAX LOAD:	5KN,1ton,2ton	Rentang pengukuran yang efektif:	0,2%~100%(1tingkat)/0,4%~100%(0,5tingkat)
Akurasi pengukuran:	Tampilkan nilai ±1%/Tampilkan nilai±0,5%	Resolusi Penguji:	Beban maks 1/200000
Lebar pengujian yang efektif:	390mm	Stroke tarik efektif:	800mm;1000mm;1200mm
Rentang kecepatan pengujian:	0,001~200mm/menit; 500mm/menit	Akurasi pengukuran perpindahan:	Toleransi: ±0,5%/ toleransi: ±0,2%
Sistem pengukuran deformasi:	Rentang minimum: 10mm, Rentang maks: 800mm	Akurasi deformasi yang diukur:	Toleransi: ±0,5%
Perlindungan Kelebihan Beban:	Overload 10%, perlindungan otomatis	Ukuran Mesin:	80x55x220cm
Catu Daya:	220V, 50Hz	Kekuatan:	0.4kw
Berat mesin:	250KG
Menyoroti:	20KN universal testing machine for material testing , mechanical tensile tester with competitive price , universal testing machine with warranty

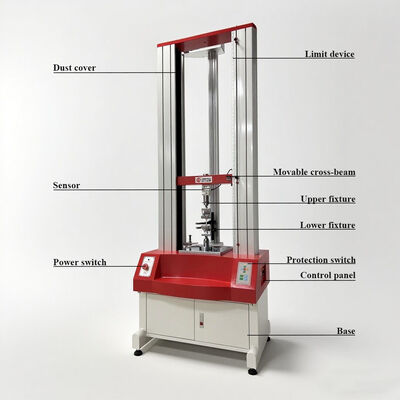

20KN Universal Testing Machine | Mechanical Tensile Tester

Product Overview

The High Temperature Universal Tensile Strength Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed, force measurement range, and high sensitivity for load and displacement measurement and control.

Key Features

Tests constant-velocity loading and displacement
Simple operation ideal for production line quality control
Equipped with large deformation extensometer for flexible materials
Photoelectric encoder for displacement measurement
Automated calculations for stress, elongation rate, tensile strength, and elastic modulus

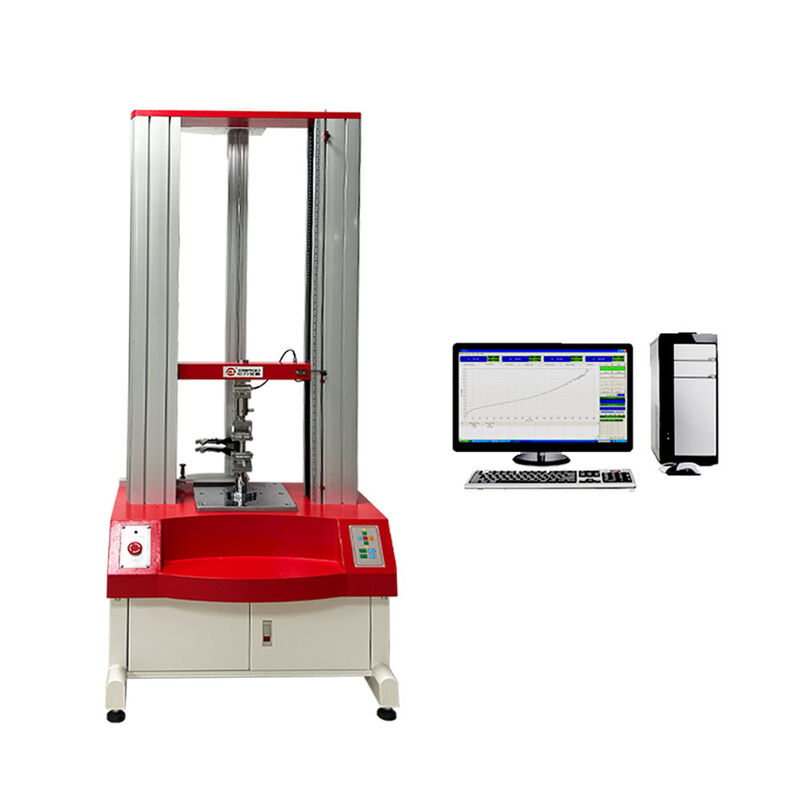

Computer display of dynamic test curves and data processing

Applications

Ideal for testing flexible materials with large deformation including rubber, plastics, leather, and more. Performs tensile, tear, adhesive strength, and peel tests.

Technical Specifications

Parameter	Specification
Max Load	5KN, 1ton, 2 ton
Accuracy Grade	1% / 0.5%
Effective Measuring Range	0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Testing Speed Range	0.001~200mm/min; 500mm/min (1000mm/min optional)
Effective Testing Width	390mm (customizable)
Power Supply	220V, 50HZ, 0.4KW
Machine Weight	250kg

Industries Served

Rubber & Plastics, Metallurgy, Manufacturing, Electronics, Automotive, Textiles, Packaging, Food, Medical Equipment, Research Laboratories, and more.

Frequently Asked Questions

How to choose the most suitable Mechanical Equipment?

Our professional team will provide recommendations based on your specific testing requirements and specifications.

What's the delivery term?

Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

Do you accept customization service?

Yes, we offer both standard and customized machines tailored to your specific requirements.

What is your warranty policy?

We offer a two-year warranty with technical support and parts replacement as needed.
