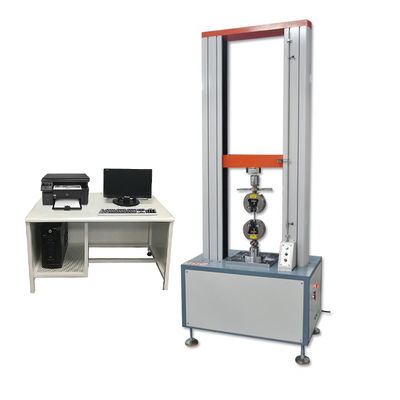

10kN 20kN 50kN Computer Universal Tensile Strength Testing Machine with High Precision and Customizable Options

Gambar besar : 10kN 20kN 50kN Computer Universal Tensile Strength Testing Machine with High Precision and Customizable Options

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	ZL

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

MAX LOAD:	5KN,10KN,20KN	Rentang pengukuran yang efektif:	0,2%~100%(1tingkat)/0,4%~100%(0,5tingkat)
Akurasi pengukuran:	Tampilkan nilai ±1%/Tampilkan nilai±0,5%	Resolusi Penguji:	Beban maks 1/200000
Lebar pengujian yang efektif:	390mm	Stroke tarik efektif:	800mm;1000mm;1200mm
Rentang kecepatan pengujian:	0,001~200mm/mnt;500mm/mnt (opsi 1000mm/mnt)	Akurasi pengukuran perpindahan:	Toleransi: ±0,5%/toleransi: ±0,2%
Sistem pengukuran deformasi:	Rentang minimum: 10mm, Rentang maks: 800mm	Akurasi deformasi yang diukur:	Toleransi: ±0,5%
Perlindungan kelebihan beban:	Overload 10%, perlindungan otomatis	Ukuran mesin:	80x55x220cm
Catu daya:	220V, 50Hz	Kekuatan:	0.4kw
Berat mesin:	250 kg
Menyoroti:	10kN Universal Testing Machine , 20kN Tensile Strength Testing Machine , 50kN Computer Universal Tensile Strength Testing Machine

10kN 20kN 50kN 100kN 200kN 300kN Computer Universal Tensile Strength Testing Machine

Main Functions

This test machine is designed for testing flexible materials with large deformation, such as rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.

Applicable Industries

Widely used in quality control across multiple industries including:

Rubber & Plastics
Metallurgical iron and steel
Manufacturing machinery
Electronic equipment
Automobile production
Textile fiber
Wire and cable
Packaging materials and foodstuffs
Medical equipment
Research laboratories
Technical supervision departments

Corresponding Standard

GB/T16491-1996 Electronic Universal Testing Machine

Technical Parameters

Model	ZL-8001
Max load	5KN,10KN, 20KN
Accurate grade	1 % /0.5 %
Effective measuring range	0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy	Display the value ±1%/Display the value±0.5%
Tester resolution	Max load 1/200000, regardless of inside and outside, constant the resolution
Effective testing width	390mm (can be widened according to customer's requirement)
Effective Tensile stroke	800mm;1000mm;1200mm (can be increased according to customer's requirement)
Range of testing speed	0.001~200mm/min; 500mm/min (1000mm/min is option)
Power supply	220V, 50HZ
Machine weight	Approximately 250 Kg

Equipment Summary

The ZL-8001A Computer Servo Type Universal Testing Machine combines electronic technology with mechanical transmission for accurate load speed and force measurement. It features high accuracy and sensitivity for load, displacement measurement and control, capable of constant-velocity loading and displacement testing. Simple to operate, it's ideal for quality control in production lines, primarily for testing non-metallic and metallic materials with loads less than 2 tons.

Testable Items

Tensile stress
Tensile strength
Rate of elongation at break
Fixed stress
Rate of stress at break
Stress strength
Tear strength
The value of force at any point
Rate of elongation at any point
Pull-out strength
Force of adhesion and the peak of force

Main Features

Features photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software combining measurement, control, calculation and storage. Automatically calculates stress, rate of elongation, tensile strength, elastic modulus, and statistical results. Records maximum points, breaking points, and designated values. Computer displays dynamic testing curves and processes data for post-test analysis.

Software Features

Standard modular function covering GB, ASTM, DIN, JIS, BS testing standards
Product information data setting with automatic formula correction
Dual-report editor with multiple format options
Unit conversion for length and force measurements
Automatic graphic scale optimization with multiple graph comparison options
Test results export in EXCEL format
Automatic or manual test result preservation with comprehensive data calculation

Included Accessories
