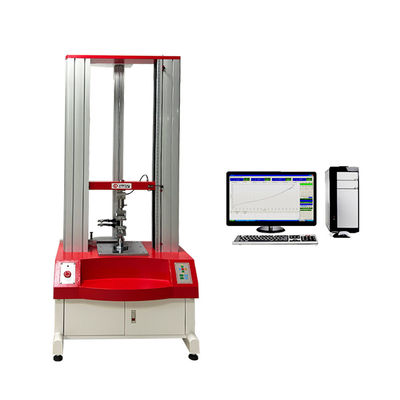

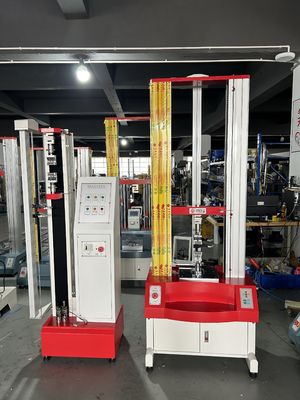

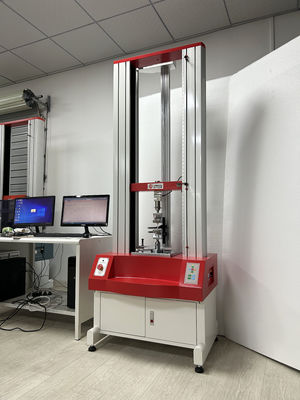

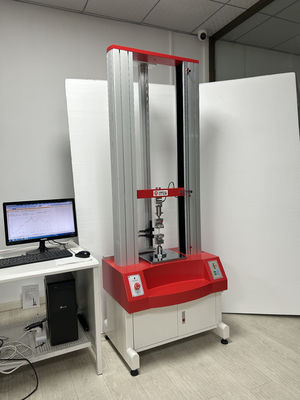

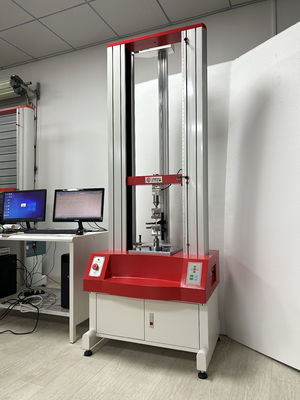

Dual Column Hounsfield Universal PVC Material Bending Pull Tensile Testing Machine
Main Functions
This test machine is designed for testing flexible materials with large deformation, including rubber, plastics, leather, and other materials. It performs tensile, tear, adhesive strength, peel, and other tests, equipped with a large deformation extensometer specialized for measuring specimen deformation.
Applicable Industries
Widely used in quality control across multiple industries including Rubber & Plastics, metallurgical iron and steel, manufacturing machinery, electronic equipment, automobile production, textile fiber, wire and cable, packaging materials and foodstuffs, instrumentation, medical equipment, civilian nuclear energy, civil aviation, colleges and universities, research laboratories, inspection arbitration, technical supervision departments, building materials, ceramics, Petroleum & Chemical, and other industries.
Corresponding Standard
GB/T16491-1996 Electronic Universal Testing Machine
Technical Parameters
| Model |
ZL-8001 |
| Max load |
5KN,10KN, 20KN |
| Accurate grade |
1 % /0.5 % |
| Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
| Tester resolution |
Max load 1/200000, regardless of inside and outside, constant the resolution |
| Load sensor |
Basic configuration: sensor(max load): one. Extended configuration: can add more sensors |
| Effective testing width |
390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke |
800mm;1000mm;1200mm (can be increased the height according to customer's requirement) |
| Range of testing speed |
0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system |
Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation |
Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety |
Electronic-limit protection |
| Testing platform moving device |
Fast/slow two speeds to control, can jog |
| Return back |
Manual or automatic operation. After the test, the moving iron returns to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%, automatic protection |

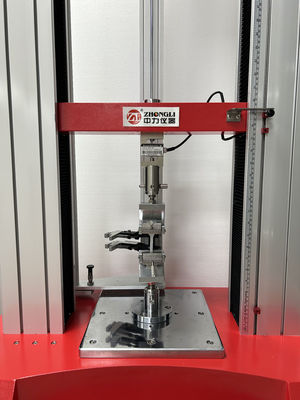

| Fixture |
A set of tensile fixture |
| Machine size |
80x55x220cm (length*width*height) |
| Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply |
220V, 50HZ |
| Power |
0.4KW (depending on different demand of force, using different motor) |
| Machine weight |
(about) 250 Kg |
| Units |
Kg, N, LB, TON, can be exchanged |
Equipment Summary
ZL-8001A Computer Servo Type Universal Testing Machine combines electronic technology with mechanical transmission, featuring accurate load speed, range of force measurement, high accuracy and sensitivity for load, displacement measurement and control. It can test constant-velocity loading and constant-velocity displacement. This machine is simple to operate and particularly suitable for quality control in production lines. It is mainly applied to test non-metallic and metallic materials with loads less than 2 ton.
Testable Items in Computer Servo Testing Machine
- Tensile stress
- Tensile strength
- Rate of elongation at break
- Fixed stress
- Rate of stress at break
- Stress strength
- Tear strength
- The value of force at any point
- Rate of elongation at any point
- Pull-out strength
- Force of adhesion and the peak of force
Software Features
Software Description
- Standard modular function: Provides necessary applications for tests covering GB, ASTM, DIN, JIS, BS and other testing standard specifications
- Tested product information: Allows data input about products with permanent re-use capability and automatic formula correction for improved accuracy
- Dual-Report Editor: Offers multiple report formats (testing program add EXCEL report format)
- Unit conversion: Length and force units can be exchanged (force: T, Kg, N, KN, g, lb; length: mm, cm, inch)
- Auto-optimization of graphic scale: Displays best measurement graphics with test moving exchange capability
- Multiple graph types: Load-displacement, load-time, displacement-time, stress-strain load-2 points extending maps, and graph comparison
- EXCEL output: Test results can be output in EXCEL format
- Data preservation: Results can be automatically or manually preserved with automatic calculation of various strength parameters
- Historical data: Software can output previous data
Accessories Included
- Warranted book within one-year and operating instructions
- A group of fixture
- Testing software for tensile machine
- A set of brand computer, color printer
